What are the applications of filament winding?

     Filament winding is a manufacturing process that is used to create composite structures, such as pipes, tanks, and pressure vessels. It involves winding fibers, such as carbon or glass, around a mandrel, or form and then applying a resin to bind the fibers together. The result is a strong, stiff, and lightweight composite structure that can be used in a wide range of applications. Below mentioned are some of the applications with examples.

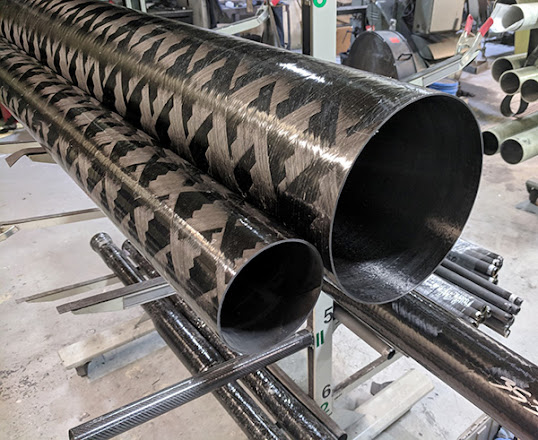

Pipes and tubing


 Filament winding is commonly used to manufacture pipes and tubing for a variety of industries, including oil and gas, water treatment, and chemical processing. The process allows for the creation of pipes with a high strength-to-weight ratio, excellent corrosion resistance, and good thermal insulation properties. Filament-wound pipes can be used in both above and below-ground applications.


One example of the application of filament winding is the production of fiberglass-reinforced plastic (FRP) pipes. These pipes are used in a variety of industries, including chemical processing, water treatment, and oil and gas. They are resistant to corrosion and have a long service life, making them an attractive option for use in harsh environments.

Overall, filament winding is a versatile manufacturing process that can be used to produce a wide range of pipes and tubing for various applications. The strength and durability of the final product make it an attractive option for use in industries such as chemical processing, water treatment, oil and gas, and many more, where corrosion and high pressure are a concern.

Pressure vessels
Filament winding is also used to manufacture pressure vessels such as tanks and reactors, for storing and transporting gases and liquids. The process allows for the creation of vessels with high strength and stiffness, good corrosion resistance, and excellent thermal insulation properties.
One example is the production of fiberglass-reinforced plastic (FRP) pressure vessels. These vessels are used in a variety of industries, such as chemical processing, water treatment, and oil and gas. They are resistant to corrosion and have a long service life, making them an attractive option for use in harsh environments. FRP vessels are lightweight and have a high strength-to-weight ratio, which makes them easy to transport and install.

Hydrogen Tank[Type-3]

Another example is the production of carbon fiber-reinforced plastic (CFRP) pressure vessels. These vessels are used in aerospace and automotive applications, where weight savings are essential. CFRP vessels are also resistant to corrosion and high temperatures. They are also used in the production of hydrogen fuel cells and other high-pressure systems.

Overall, it is a manufacturing process that can be used to produce a wide range of pressure vessels for various applications. The strength, durability, and corrosion resistance of the final product make it an attractive option for use in industries such as chemical processing, water treatment, oil and gas, and aerospace where high pressure, corrosive environment, and weight savings are a concern.


Aerospace and defense

    Filament winding is used in the aerospace and defense industries to manufacture structures such as rocket motor cases and fuel tanks. The process allows for the creation of lightweight, high-strength structures that can withstand the extreme conditions of space and high-altitude flight.

One example of the application of filament winding in aerospace is the production of aircraft primary structures, such as fuselages and wing spars. These structures are typically made of carbon fiber-reinforced plastic (CFRP) and are used in both commercial and military aircraft. CFRP structures are lightweight and strong, which allows for significant weight savings and increased fuel efficiency.

Picture courtesy: Northrop Grumman

Another example is the production of rocket motor cases. These cases are used to contain the high-pressure gases produced by the rocket motor and must be able to withstand extreme temperatures and pressures. Filament winding is used to make these cases because it allows for the creation of a strong, lightweight, and durable structure that can withstand these harsh conditions.

Another example is the production of missile and rocket motor cases. These cases are used to contain the high-pressure gases produced by the missile or rocket motor and must be able to withstand extreme temperatures and pressures. Filament winding is used to produce these cases because it allows for the creation of a strong, lightweight, and durable structure that can withstand these harsh conditions.


Another example is the production of body armor and helmets. Filament winding is used to produce lightweight and strong composite structures that can provide protection to soldiers and other personnel. These structures are made of carbon fiber reinforced plastic (CFRP) and are lightweight, yet provide high levels of protection.

Filament winding is also used in the production of unmanned aerial vehicles (UAVs) and other military aircraft structures. The combination of the strength of the fibers and the stiffness of the mandrel used to wind the fibers allows for the creation of a lightweight and stiff structure that can withstand the high-performance requirements of these defense applications.

Overall, filament winding is a versatile manufacturing process that can be used to produce a wide range of composite structures and parts for aerospace and defense applications. The strength, durability, and lightweight properties of the final product make it an attractive option for use in the aerospace industry where weight savings, high performance, and durability are a concern.


Sports equipment

Filament winding is used to manufacture sports equipment such as golf clubs, tennis rackets, and hockey sticks. The process allows for the creation of lightweight, high-strength, and stiff structures that can withstand the rigors of intense use.

One example of the application of filament winding in sports equipment is the production of golf clubs and tennis racquets. These pieces of equipment are typically made of carbon fiber-reinforced plastic (CFRP) and are characterized by their strength and lightweight properties. Filament winding allows manufacturers to create clubs and racquets that are lightweight yet have a high level of stiffness, which results in improved performance for the players.

Another example is the production of fishing rods. Filament winding is used to produce lightweight and strong composite structures that can withstand the high-performance requirements of fishing. These rods are made of carbon fiber or glass fiber-reinforced plastic and are characterized by their sensitivity, strength, and lightweight properties.

Filament winding is also used to produce hockey sticks, ski poles, and other sports equipment. The combination of the strength of the fibers and the stiffness of the mandrel used to wind the fibers allows for creating a lightweight and stiff structure that can withstand the high-performance requirements of these sports.

Picture courtesy: Scott Composites

Overall, it is a manufacturing process that can be used to produce a wide range of composite structures and parts for sports equipment. The strength, durability, and lightweight properties of the final product make it an attractive option for use in the sports equipment industry where weight savings, high performance, and durability are a concern.


Automotive

Filament winding is used in the automotive industry to manufacture parts such as drive shafts, suspension components, and exhaust systems. The process allows for the creation of lightweight, high-strength, and stiff structures that can withstand the rigors of high-performance use.


One example of the application of filament winding in automotive is the production of drive shafts. These components are typically made of carbon fiber-reinforced plastic (CFRP) and are characterized by their strength and lightweight properties. Filament winding allows manufacturers to create drive shafts that are lightweight yet have a high level of stiffness, which results in improved performance and fuel efficiency for the vehicle.

Picture courtesy: AMRC

Another example is the production of suspension components. Filament winding is used to produce lightweight and strong composite structures that can withstand the high-performance requirements of automotive suspension systems. These components are made of carbon fiber or glass fiber-reinforced plastic and are characterized by their strength and lightweight properties.

Filament winding is also used in the production of other automotive parts such as exhaust systems, fuel tanks, and body panels. The combination of the strength of the fibers and the stiffness of the mandrel used to wind the fibers allows for creating a lightweight and stiff structure that can withstand the high-performance requirements of these automotive applications.

Overall, filament winding is a versatile manufacturing process that can be used to produce a wide range of composite structures and parts for automotive applications. The strength, durability, and lightweight properties of the final product make it an attractive option for use in the automotive industry where weight savings, high performance, and durability are a concern.


Medical equipment

Filament winding is used to manufacture medical equipment such as surgical instruments, prosthetic devices, and orthopedic implants. The process allows for the creation of lightweight, high-strength, and stiff structures that can withstand the demanding conditions of medical use.
One example of the application of filament winding in medical equipment is the production of orthopedic implants, such as artificial limbs, spinal implants, and other surgical devices. These devices are typically made of carbon fiber-reinforced plastic (CFRP) and are characterized by their strength, durability, and biocompatibility properties. Filament winding allows manufacturers to create devices that are lightweight yet have a high level of stiffness, which results in improved performance and patient comfort.

Another example is the production of wound dressings and suture materials. Filament winding is used to produce lightweight and strong composite structures that can withstand the high-performance requirements of medical applications. These materials are made of carbon fiber or glass fiber-reinforced plastic and are characterized by their strength and lightweight properties.

Filament winding is also used in the production of other medical equipment such as diagnostic imaging equipment and surgical instruments. The combination of the strength of the fibers and the stiffness of the mandrel used to wind the fibers allows for creating a lightweight and stiff structure that can withstand the high-performance requirements of these medical applications.

Overall, filament winding is a versatile manufacturing process that can be used to produce a wide range of composite structures and parts for medical equipment. The strength, durability, and lightweight properties of the final product make it an attractive option for use in the medical equipment industry where weight savings, high performance, and biocompatibility are a concern.


Wind energy

Filament winding is used to manufacture components for wind turbines, such as rotor blades and nacelles. The process allows for the creation of lightweight, high-strength, and stiff structures that can withstand the demanding conditions of wind energy production.

One example of the application of filament winding in wind energy is the production of wind turbine blades. These blades are typically made of carbon fiber-reinforced plastic (CFRP) and are characterized by their strength, durability, and lightweight properties. Filament winding allows manufacturers to create blades that are lightweight yet have a high level of stiffness, which results in improved performance and efficiency of the turbine.

Another example of filament winding in wind energy is the production of wind turbine towers. Filament winding is used to produce lightweight and strong composite structures that can withstand the high-performance requirements of wind turbines. These towers are made of carbon fiber or glass fiber-reinforced plastic and are characterized by their strength and lightweight properties.

Overall, filament winding is a manufacturing process that can be used to produce a wide range of composite structures and parts for wind energy applications. The strength, durability, and lightweight properties of the final product make it an attractive option for use in the wind energy industry where weight savings, high performance, and durability are a concern.


    In conclusion, filament winding can be used to create a wide range of composite structures. It is commonly used in industries such as oil and gas, water treatment, aerospace and defense, sports equipment, automotive, medical equipment, and wind energy. The process allows for the creation of lightweight, high-strength, and stiff structures that can withstand the demanding conditions of various applications.
